Mastriq

Dispenser

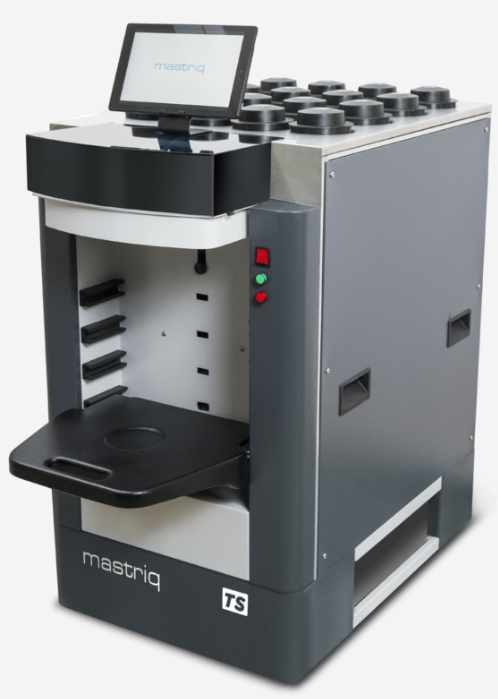

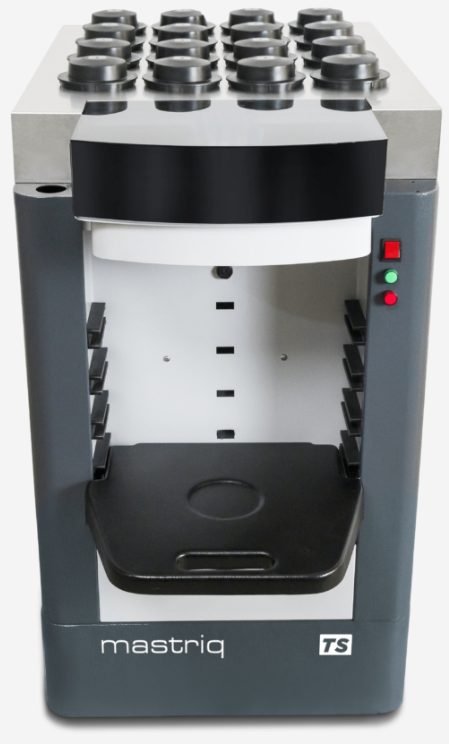

TS – Automatic Tinting & Dispensing Machine

THE IDEAL DISPENSER

The TS dispenser is reliable, accurate, easy to operate & maintain.
It comes with different types of pumps depending on the type of
liquid, speed & volumes.
The TS model comes with “MastriqOne” integrated tinting
software that ensures a very high level of performance and control
during the tinting process.
“MastriqOne” is easy to use, built on the latest platform, allow
paint companies to have better access & control over their retail
shops. Clients can have uninterrupted access to data, they can
integrate & analyse quickly to improve performance

Category
Tag
Dispenser
Automatic Dispenser

Description

DISPENSING TYPE

Sequential/Simultaneous

DISPENSING MODE

Volumetric

MINIMUM DISPENSING

1/384 fl. oz. (0.077ml) using 4 mm nozzles
1/768 fl. oz. (0.038ml) using 2 mm nozzles

DISPENSING SPEED

0.2 Ltr /min

NUMBER OF CANISTERS

Up to 16

CANISTER CAPACITY

2 Ltr

COLORANT STIRRING

Automatic and programmable

CAN SENSOR

Standard

CAN HANDLING

Manually adjustable can shelf

HUMIDIFIER CAP

Automatic

LASER TARGET LIGHT

Optional

COMPATIBILITY

Universal / Low VOC / Zero VOC / Solvent

POWER SUPPLY

220V / 50 Hz & 110V / 60 Hz

MACHINE NET WEIGHT

143 kg

MAXIMUM MACHINE SIZE

W 790 x D 805 x H 1250 mm

CONTAINER LOADING QUANTITY

20 ft. container – 36 machines / 40 ft. container – 72 machines

SOFTWARE

mastriqONE
